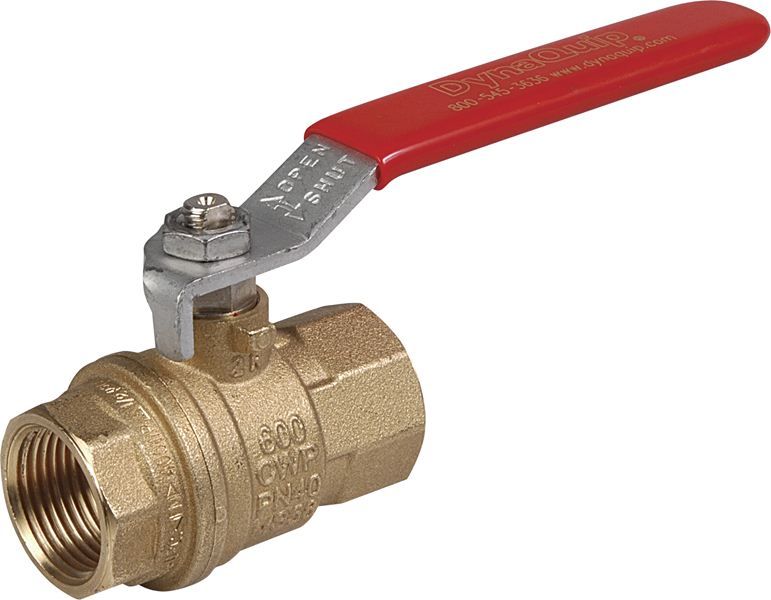

VMG2.A9 1/2, Low Lead Brass 2 PC Screwed Body Valve – VMG Series

Additional information

Valve Size

1/2 in

Thread Type

FNPT

Valve CWP

600 psi

A - Port Diameter

0.59 in

Temperature

-20 to 450 ºF

Handle Type

Lever

Series

VMG

Valve Type

Ball

Operation Type

Manual

Ball Pattern

Straight Through

End Connections

FNPT

Body Style

2 Piece

Porting

Full

Note

AB1953, Drinking Water, Lead-Free, LOW LEAD, NSF/ANSI 372, Pure, Ultra Pure, VT S 1.52, Water, WC510L

Number of Ports

2

Valve Working Steam Pressure

150 psi

Ball Material

Lead-Free Brass

Body Material

Dacromet® Finish, Vinyl Grip

Handle Finish

Brass CW510L

Body Finish

PTFE

Seal Type

Brass CW510L

Stem Material

Steel

Handle Material

Brass

Trim Material

2.32 in

Body Length

3.94 in

Body Inner Diameter

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

Description

For Potable Water Applications (NSF/ANSI 372)
600 PSI CWP
Full Port 1/2″ – 2″

VMG Series valves are certified NSF/ANSI 372 to meet current No-Lead Laws CA1953 and VT S152 as well as “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation” effective January 2014.

  • BODY – Hot forged sand blasted, unplated Lead-Free (NSF/ANSI 372) brass body
  • BALL – Chrome plated Lead-Free brass ball for longer life
  • STEM – Reinforced PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance. Blowout-proof unplated Lead-Free brass stem
  • SEALS – Glass filled pure PTFE self-lubricating seats with flexible-lip design
  • THREAD – Female NPT taper ANSI B.1.20.1

QUALITY FEATURES

  • Dual sealing system allows valve to be operated or installed in either direction making installation easier
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Nylon grip Carbon steel handle can be removed with valve in service.
  • Certified NSF/ANSI 372 to meet No-Lead Laws CA1953 and VT S152 as well as effective 2014 “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation.

DynaQuip® remains an industry leader by providing lead-free solutions for manual and automated valve applications for potable water. See our Lead-Free Solutions section for additional information and qualifying products.
