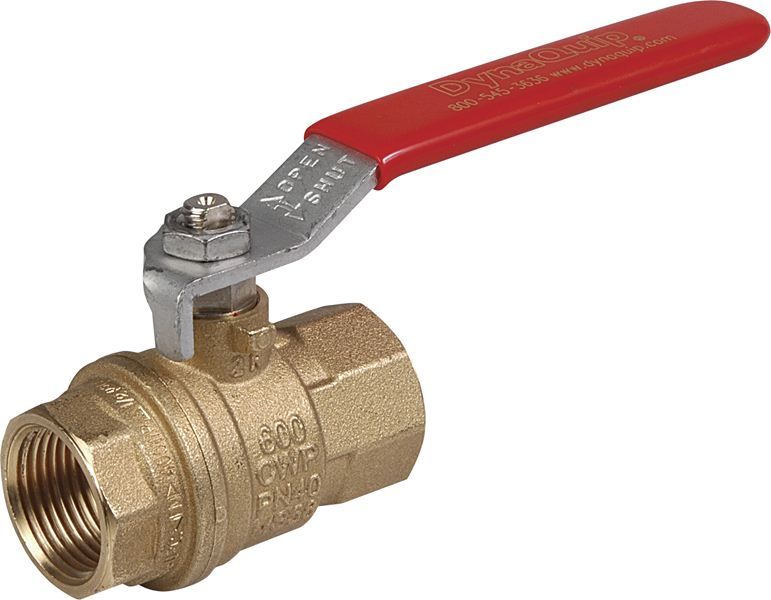

VMG2.A9 1/4, Low Lead Brass 2 PC Screwed Body Valve – VMG Series

VMG2.A9 1/4, Low Lead Brass 2 PC Screwed Body Valve - VMG Series

SKU: VMG2.A9 1/4 Category:
Printable Page
Email This Page
Save To Favorites
Low Lead Brass 2 PC Screwed Body Valve - VMG Series Brochure
Low Lead Brass 2 PC Screwed Body Valve - VMG Series Brochure

Additional information

Valve Size

1/4 in
Thread Type

FNPT
Valve CWP

600 psi
A - Port Diameter

0.32 in
Temperature Range

-20 to 450 ºF
Handle Type

Lever
Series

VMG
Valve Type

Ball
Operation Type

Manual
Ball Pattern

Straight Through
End Connections

FNPT
Body Style

2 Piece
Porting

Full
Number of Ports

2
Valve Working Steam Pressure

150 psi
Ball Material

Lead-Free Brass
Seat Material&nbsp

RTFE
Body Material

Lead-Free Brass
Handle Finish

Dacromet® Finish, Vinyl Grip
Body Finish

Brass CW510L
Seal Type

PTFE
Stem Material

Brass CW510L
Handle Material

Steel
Trim Material

Brass
B Dimensions

1.77 in
D Dimensions

3.23 in
Application

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

Description

For Potable Water Applications (NSF61g)
600 PSI CWP
Full Port 1/2″ – 2″

VMG Series valves are certified NSF61g to meets current No-Lead Laws CA1953 and VT S152 as well as “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation” effective January 2014.

  • BODY – Hot forged sand blasted, unplated Lead-Free (NSF61-G) brass body
  • BALL – Chrome plated Lead-Free brass ball for longer life
  • STEM – Reinforced PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance. Blowout-proof unplated Lead-Free brass stem
  • SEALS – Glass filled pure PTFE self-lubricating seats with flexible-lip design
  • THREAD – Female NPT taper ANSI B.1.20.1

QUALITY FEATURES

  • Dual sealing system allows valve to be operated or installed in either direction making installation easier
  • Handle clearly shows ball position
  • Silicone-free lubricant on all seals
  • Nylon grip Carbon steel handle can be removed with valve in service.
  • Certified NAF61g to meets No-Lead Laws CA1953 and VT S152 as well as effective 2014 “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation.

DynaQuip® remains an industry leader by providing lead-free solutions for manual and automated valve applications for potable water. See our Lead-Free Solutions section for additional information and qualifying products.
