Valve Size
|
1 1/2 in
|
|
Thread Type
|
FNPT
|
|
Valve CWP
|
600 psi
|
|
A - Port Diameter
|
1.50 in
|
|
Temperature
|
-20 to 450 ºF
|
|
Handle Type
|
Locking
|
|
Series
|
VMG
|
|
Valve Type
|
Ball
|
|
Operation Type
|
Manual
|
|
Ball Pattern
|
Straight Through
|
|
End Connections
|
FNPT
|
|
Body Style
|
2 Piece
|
|
Porting
|
Full
|
|
Note
|
Lead-Free, LOW LEAD, NSF/ANSI 372, AB1953, VT S 1.52, WC510L, Water, Drinking Water, Pure, Ultra Pure
|
|
Number of Ports
|
2
|
|
Valve Working Steam Pressure
|
150 psi
|
|
Ball Material
|
Lead-Free Brass
|
|
Body Material
|
Dacromet® Finish, Vinyl Grip
|
|
Handle Finish
|
Brass CW510L
|
|
Body Finish
|
PTFE
|
|
Seal Type
|
Brass CW510L
|
|
Stem Material
|
Steel
|
|
Handle Material
|
Brass
|
|
Trim Material
|
4.02 in
|
|
Body Length
|
6.16 in
|
|
Body Inner Diameter
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|
For Potable Water Applications (NSF61g)
600 PSI CWP
Full Port 1/2" - 2"

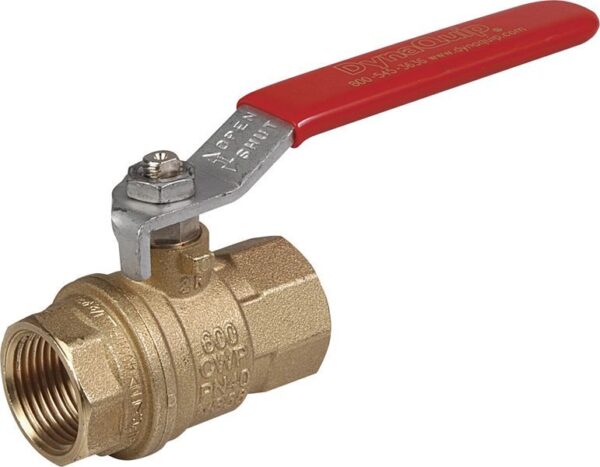

VMG Series valves are certified NSF61g to meets current No-Lead Laws CA1953 and VT S152 as well as “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation” effective January 2014.
- BODY - Hot forged sand blasted, unplated Lead-Free (NSF61-G) brass body
- BALL - Chrome plated Lead-Free brass ball for longer life
- STEM - Reinforced PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance. Blowout-proof unplated Lead-Free brass stem
- SEALS - Glass filled pure PTFE self-lubricating seats with flexible-lip design
- THREAD - Female NPT taper ANSI B.1.20.1
QUALITY FEATURES
- Dual sealing system allows valve to be operated or installed in either direction making installation easier
- Handle clearly shows ball position
- Silicone-free lubricant on all seals
- Nylon grip Carbon steel handle can be removed with valve in service.
- Certified NAF61g to meets No-Lead Laws CA1953 and VT S152 as well as effective 2014 “Reduction of Lead in Drinking Water Act” or “Get the Lead Out Act” legislation.
DynaQuip® remains an industry leader by providing lead-free solutions for manual and automated valve applications for potable water. See our Lead-Free Solutions section for additional information and qualifying products.
