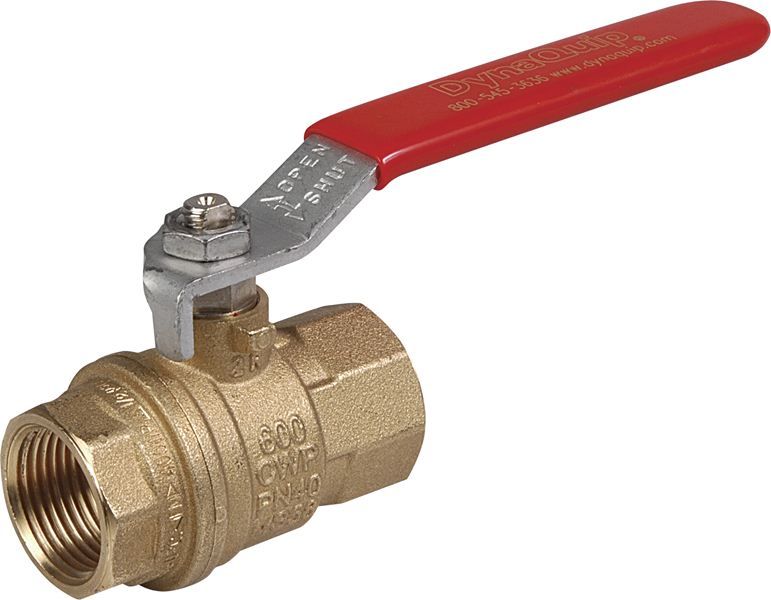

VMH2.A9 3/8, Brass 2-Piece Screwed Body Valve – VMH Series

Additional information

Valve Size

3/8 in

Thread Type

FNPT

Valve CWP

600 psi

Body Inner Diameter

0.38 in

Temperature Range

-20 to 450 ºF

Handle Type

Lever

Series

VMH

Valve Type

Ball

Operation Type

Manual

Ball Pattern

Straight Through

End Connections

FNPT

Body Style

2 Piece

Porting

Full

Weight

4.38 lb

Number of Ports

2

Valve Working Steam Pressure

150 psi

Ball Material

Chrome Plated Brass

Seat Material

RTFE

Body Material

Brass

Stem Seal Type

PTFE

Handle Finish

Dacromet® Finish, Vinyl Grip

Seal Type

PTFE

Stem Material

Nickel Plated Brass

Handle Material

Steel

Trim Material

Brass

Body Length

1.77 in

E Dimensions

3.70 in

Application

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

Description

VMH Series ball valves offer the perfect balance between performance and cost. This Industrial two-piece, forged brass valves are precision machined and designed to handle your most demanding brass appropriate application. With multiple options and approvals including UL® for LP Gas, AGA® and CGA® for Natural Gas, and Factory Mutual for Fire Protection, this valve is the most widely used brass quarter-turn manual valve we offer. Need this valve automated? Look at our DynaMatic EHH and PHH series for a similar valve assembly.

Key Benefits:

  • Two-piece forged Brass and Corrosion-Resistant Handle
  • Reinforced PTFE Seats and Seals
  • Blowout-Proof Stem Design with Adjustable Packing
  • Approvals include: UL® for LP Gas, AGA® and CGA® for Natural Gas, and Factory Mutual for Fire Protection

Options:

  • Latching Lockout Handle Kit (OP)
  • “Gull Wing” Tee Handle (OE)
