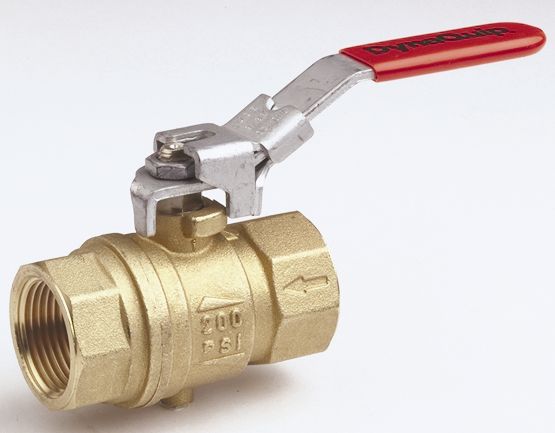

VMH2.A9JP 1/4, Brass 2-Piece Safety Exhaust Valve - VMH Exhaust Series

Valve Size 1/4 in
Thread Type FNPT
Valve CWP 200 psi
A - Port Diameter 0.32 in
Temperature Range 40 to 140 ºF
Handle Type Locking - OSHA
Series VMH Exhaust
Valve Type Ball
Operation Type Manual
Ball Pattern Straight Through
End Connections FNPT
Body Style 2 Piece
Porting Full - Exhausting
Weight 0.31 lb
Number of Ports 2
Ball Material Chrome Plated Brass
Seat Material RTFE
Body Material Brass
Stem Seal Type PTFE
Handle Finish Dacromet® Finish, Vinyl Grip
Seal Type PTFE
Stem Material Nickel Plated Brass
Handle Material Steel
Trim Material Brass
B Dimensions 1.77 in
E Dimensions 3.70 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
VMH Exhaust Series ball valves automatically vent residual air on the downstream side when closed. Tamper-resistant lockout/tag-out design for additional safety and security. Available in FNPT X FNPT or Threaded exhaust port for mounting mufflers. Heavy-duty forged brass, blowout-proof stem, and orange safety handle for additional safety and durability. Meets OSHA req. 1910.147 for energy isolating and lockout devices.

Key Benefits:
  • Two-piece forged Brass and Corrosion-Resistant Handle
  • Reinforced PTFE Seats and Seals
  • Meets OSHA req. 1910.147 for energy isolating and lockout devices.
  • 5/16” shackle size available upon request
  • Threaded muffler air silencer available (pn. AV.M1) for noise reduction and operator shielding from airline contaminants.
  • Exhaust Tubing (pn. AV.XT1) for directing exhaust air, condensation and contaminants to an appropriate location
  • Multiple Lockout Clasp (pn. AV.LC1) works in association with OSHA lockout/tag-out regulation for multiple operator lockout.
