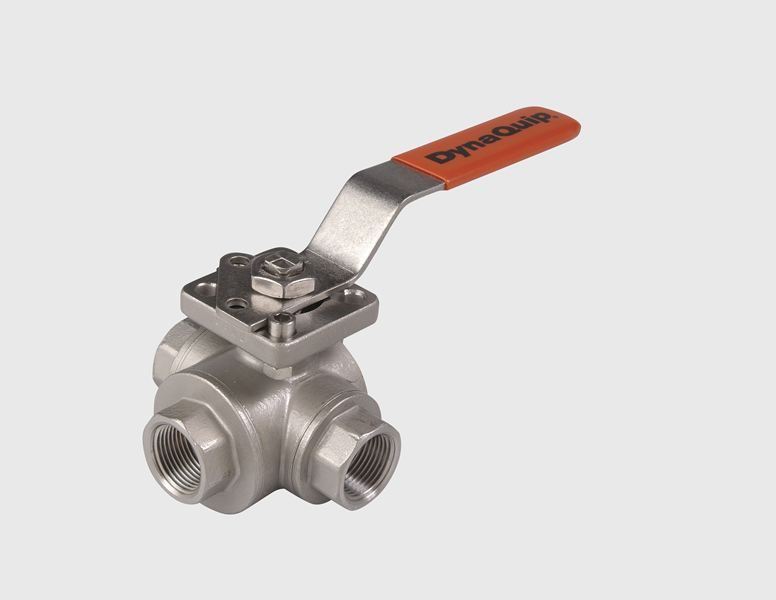

VYSA.AM 1/4, Stainless Steel 3-Way Valve - VYSA Series


Valve Size 1/4 in
Thread Type FNPT
Valve CWP 1000 psi
Porting Full
G - Port Diameter 0.47 in
Handle Type Lever
Series VYS
Valve Type Ball
Operation Type Manual
Ball Pattern L
End Connections FNPT
Body Style 3-Way
Temperature Range -20 to 450 ºF
Weight 1.98 lb
Number of Ports 3
Ball Material 316 Stainless Steel
Seat Material RTFE
Body Material Stainless Steel
Handle Finish Vinyl Grip
Body Finish 316 Stainless Steel
Seal Type PTFE/Viton®
Stem Material Stainless Steel
Handle Material Stainless Steel
Trim Material Stainless Steel
A Dimensions 4.37 in
C Dimensions 7.70 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications

VYSA Series Three-way utility ball valve has a 90deg “L” port (diverter) design and features and investment cast body and endcaps, stainless steel trim, RTFE seats, blowout-proof stem, and NPT end connections. ISO 5211 mounting pad makes automation easy! See our DynaMatic EYSA and PYSA series for assemblies.

Key Benefits:

  • 150 WSP
  • ISO 5211 direct mount pad
  • Self-adjusting Stem packing
  • Blowout Proof Stem Design
  • Full Port

Options:

  • Latching Lockout Handle Kit (OP)
