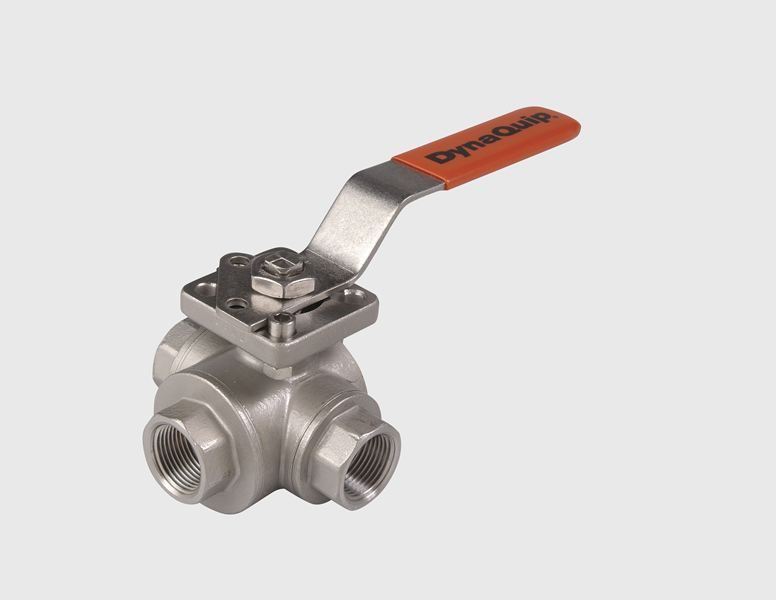

VYSG.AM 1 1/2, Stainless Steel 3-Way Valve – VYSG Series

SKU: VYSG.AM 1 1/2 Category:

Additional information

Thread Type

FNPT

Valve CWP

1000 psi

Handle Type

Lever

Series

VYS

Valve Type

Ball

Operation Type

Manual

Ball Pattern

L

End Connections

FNPT

Body Style

3-Way

Temperature Range

-20 to 450 ºF

Weight

1.98 lb

Number of Ports

3

Ball Material

316 Stainless Steel

Seat Material

RTFE

Body Material

Stainless Steel

Handle Finish

Vinyl Grip

Body Finish

316 Stainless Steel

Seal Type

PTFE/Viton®

Stem Material

Stainless Steel

Handle Material

Stainless Steel

Trim Material

Stainless Steel

A Dimensions

3.14 in

C Dimensions

5.80 in

Application

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

Porting

Standard

Valve Size

1 1/2 in

G - Port Diameter

1.26 in

Description

VYSG Series Three-way utility ball valve has a 90deg “L” port (diverter) design and features and investment cast body and endcaps, stainless steel trim, RTFE seats, blowout-proof stem, and NPT end connections. ISO 5211 mounting pad makes automation easy! See our DynaMatic EYSA and PYSA series for assemblies.

Key Benefits:

  • 150 WSP
  • ISO 5211 direct mount pad
  • Self-adjusting Stem packing
  • Blowout Proof Stem Design
  • Standard Port

Options:

  • Latching Lockout Handle Kit (OP)
