Valve Size
|
1 1/2 in
|
|
Electric Voltage
|
460 VAC (3 Phase)
|
|
Series
|
EYSA
|
|
Operator
|
Actuator
|
|
Actuator Type
|
Electric
|
|
Actuator Part Number
|
MA7G
|
|
Valve Type
|
Ball
|
|
Thread Type
|
FNPT
|
|
Operating PSI (D)
|
300 psi
|
|
Valve CWP
|
800 psi
|
|
Port Opening Size
|
1 1/2
|
|
Temperature Range - Media
|
-20 to 450 ºF
|
|
Temperature Range - Ambient
|
10 to 140 ºF
|
|
Weight
|
32.10 lb
|
|
Body Style
|
3-Way
|
|
Number of Ports
|
3
|
|
K
|
10.04 in
|
|
Valve Body Material
|
Stainless Steel
|
|
Valve Construction
|
Stainless Steel
|
|
Stem Seal Type
|
P.E.E.K. (foodgrade)/Viton®/PTFE
|
|
Body Finish
|
Stainless Steel
|
|
Ball Material
|
316 Stainless Steel
|
|
Seat Material
|
RTFE
|
|
Seal Type
|
PTFE/Viton®
|
|
Stem Material
|
316 Stainless Steel
|
|
A Dimensions
|
5.67 in
|
|
B Dimensions
|
3.65 in
|
|
C Dimensions
|
1.50 in
|
|
D Dimensions
|
2.84 in
|
|
E Dimensions
|
1.83 in
|
|
F Dimensions
|
2.89 in
|
|
G Dimensions
|
12.94 in
|
|
H Dimensions
|
13.00 in
|
|
J Dimensions
|
7.87 in
|
|
Application
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|
|
Porting Style
|
L Port
|

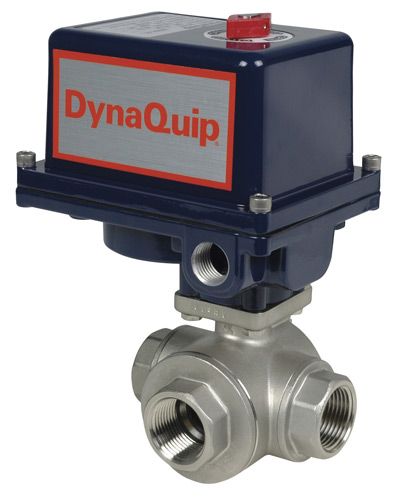

The DynaMatic EYSA Series of electrically actuated stainless steel three-way valves offers and excellent option for automated diverter-type applications where corrosion-resistant stainless steel is required. The EYSA Series uses our DE and MA Series electric actuators. The EYSA Series valves are available with 115VAC, 220VAC, 24VAC, 24VDC, and 12VDC. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
Features Include:
- 316 Stainless Steel Bodies and Trim
- Full Port
- 3-Way “L” Pattern Diverter Ball Valve
- Four RTFE Seats Allow Flow in Any Direction
- NPT Female Threaded Ends
- Viton Stem Seals
- ISO 5211 Direct Mounting
- "T" Pattern Available
