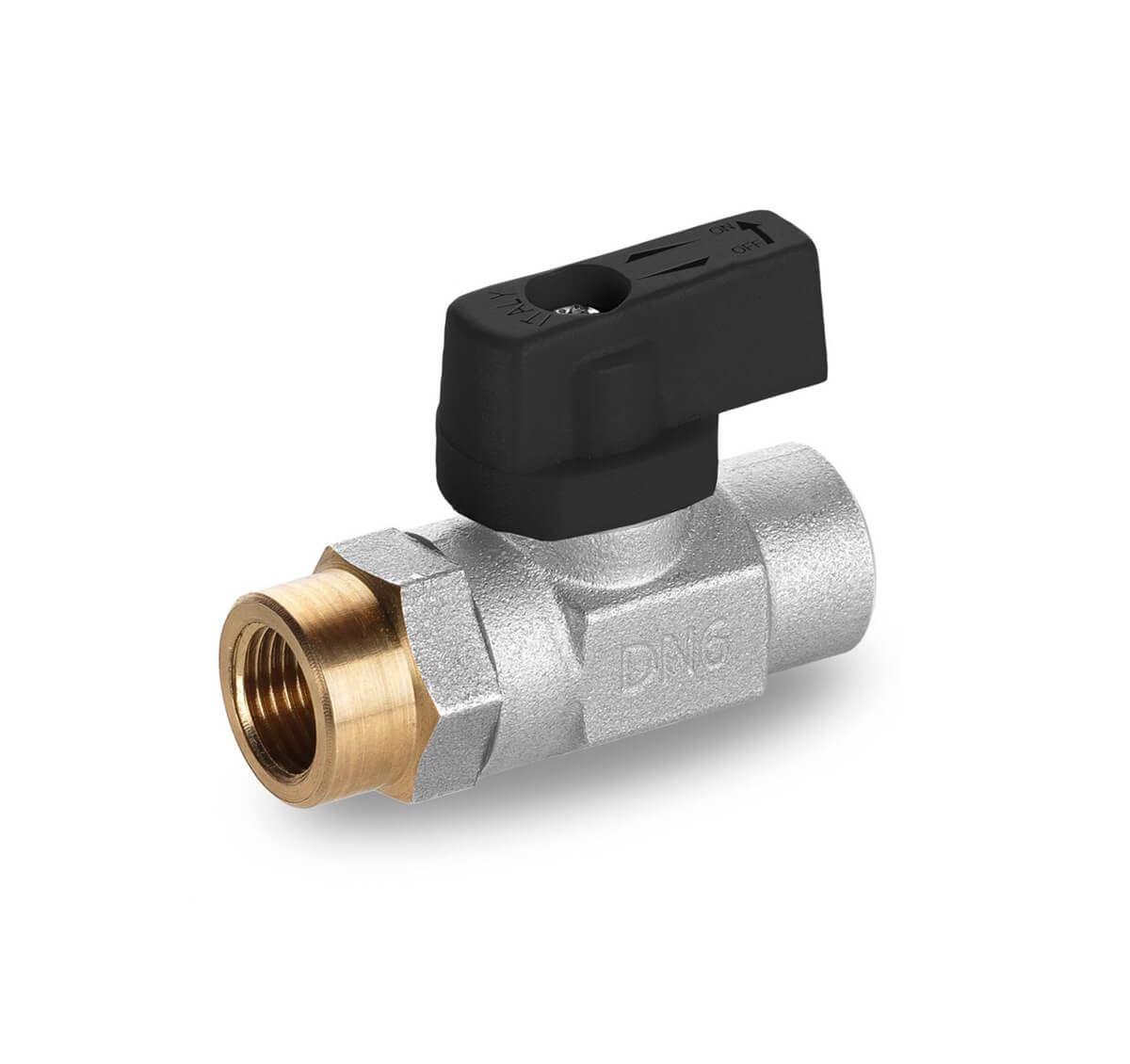

HIGH PRESSURE FORGED BRASS MICRO VALVE – VUH SERIES

VUH Series brass micro valves are for high-pressure small line fluid and gas control applications. The hot-forged sand-blasted brass body, and dual-sealed chrome-plated brass ball, with no metal-to-metal moving parts, is maintenance-free and designed to withstand high-pressure applications (900 PSI) and harsh environments (-4° to 200°F)

Key Benefits:

  • Rugged Micro Ball Valve for High Pressure Applications
  • Meets EN 12165 Finest Brass Specification
  • Rugged Hot Forged Construction
  • PTFE Self-Lubricating Seats

Sort by
Display
per page
Item # Valve Size Thread Type Valve CWP Port Diameter Temperature Range Handle Type List Price
VUH1.AM 1/4 1/4" NPT Taper Female x Female 900 PSI 0.217" -4° to 200°F Wing
Quote
VUH1.PM 1/4 1/4" NPT Taper Male x Female 900 PSI 0.217" -4 to 200 ºF Wing
Quote
VUH2.AM 1/8 1/8" NPT Taper Female x Female 900 PSI 0.217" -4° to 200°F Wing
Quote
VUH2.PM 1/8 1/8" NPT Taper Male x Female 900 PSI 0.217" -4° to 200°F Wing
Quote
