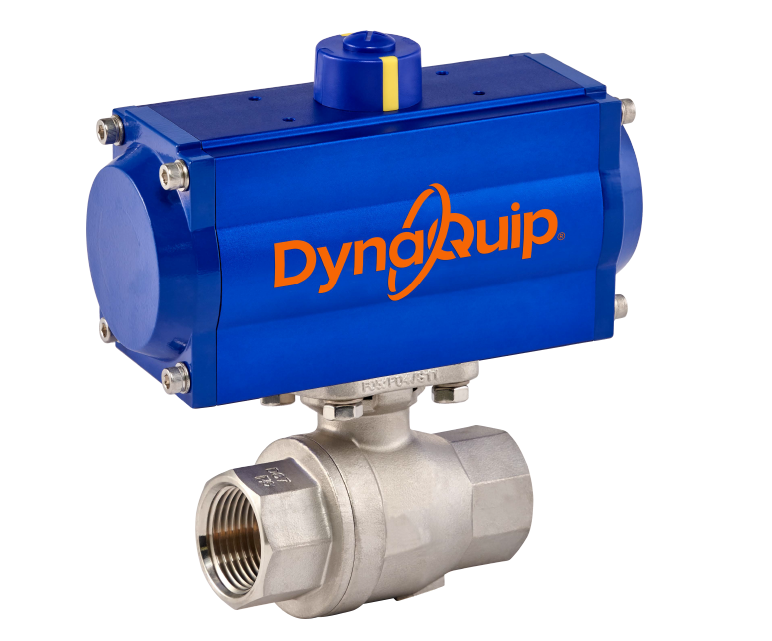

PAS SERIES - 2 PC High Pressure Stainless Steel Ball Valve - Pneumatic Actuator
The PAS Series of pneumatic automated stainless-steel ball valves are designed for high-pressure applications. DynaQuip’s pioneering direct mount valve design is compact and eliminates the need for brackets which reduces side-loading or other misalignment concerns.
These pneumatically automated valves are available with double acting or spring return (specify fail-open or fail-close action). Additional actuator accessories include NEMA 4, 7 or 9 Pilot Solenoid Valves (115 VAC, 220 VAC, 24 VAC, 24 VDC, and 12 VDC voltages), Valve Position Limit Switches and Speed Controls. All models are pre-sized for clean water, air, or light oil applications. Contact us for severe service or special actuator options.
Sort by
Display
per page
| Item # | Valve Size | Pneumatic Actuator Type | Actuator Type | Valve Type | Operating PSI (D) | Seat Material | Seal Type | Temperature Range - Media | Temperature Range - Ambient | Body Material | List Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PAS21ARDA052 | 1/4 in | Double Acting | HP052DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS22ARDA052 | 3/8 in | Double Acting | HP052DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS23ARDA052 | 1/2 in | Double Acting | HP052DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS24ARDA052 | 3/4 in | Double Acting | HP052DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS25ARDA063 | 1 in | Double Acting | HP063DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS26ARDA075 | 1 1/4 in | Double Acting | HP075DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS27ARDA083 | 1 1/2 in | Double Acting | HP083DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS28ARDA083 | 2 in | Double Acting | HP083DA | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS21ARSR06412 | 1/4 in | Spring Return - Fail Closed | HP064SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS22ARSR06412 | 3/8 in | Spring Return - Fail Closed | HP064SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS23ARSR06412 | 1/2 in | Spring Return - Fail Closed | HP064SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS24ARSR07512 | 3/4 in | Spring Return - Fail Closed | HP075SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS25ARSR08312 | 1 in | Spring Return - Fail Closed | HP083SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS26ARSR09212 | 1 1/4 in | Spring Return - Fail Closed | HP092SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS27ARSR10512 | 1 1/2 in | Spring Return - Fail Closed | HP105SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS28ARSR10512 | 2 in | Spring Return - Fail Closed | HP105SR12 | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS21ARSR06410F | 1/4 in | Spring Return - Fail Open | HP064SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS22ARSR06410F | 3/8 in | Spring Return - Fail Open | HP064SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS23ARSR06410F | 1/2 in | Spring Return - Fail Open | HP064SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS24ARSR07510F | 3/4 in | Spring Return - Fail Open | HP075SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS25ARSR08310F | 1 in | HP083SR10F | Spring Return - Fail Open | HP075SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF |
Quote
|
|
| PAS26ARSR09210F | HP083SR10F | 1 1/4 in | Spring Return - Fail Open | HP092SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF |
Quote
|
|
| PAS27ARSR10510F | 1 1/2 in | Spring Return - Fail Open | HP105SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
|
| PAS28ARSR10510F | 2 in | Spring Return - Fail Open | HP105SR10F | Ball | 3000 PSI | Delrin® | PTFE | -20° / 185°F | -4 to 176 ºF | Stainless Steel |
Quote
|
