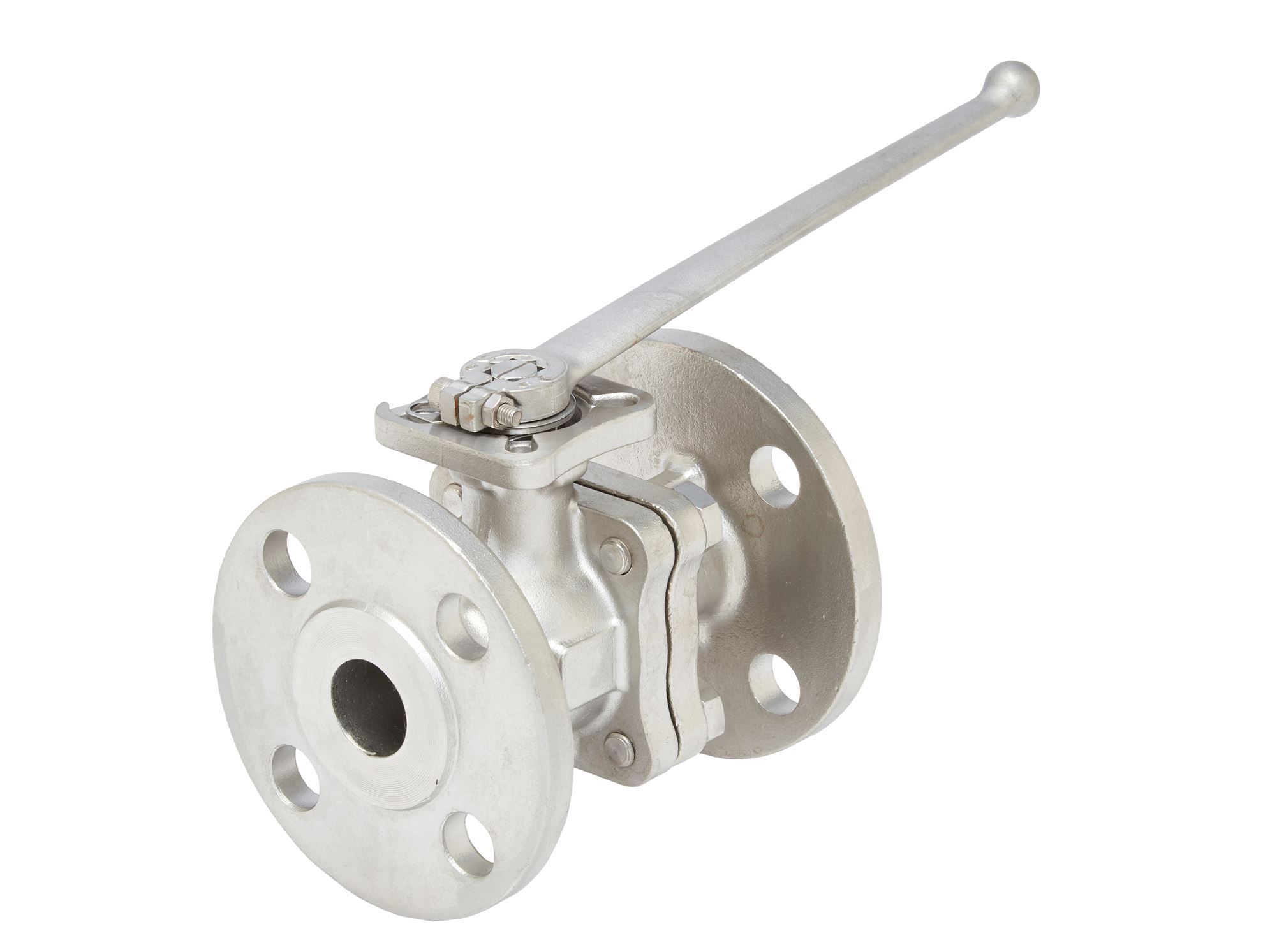

V5S2.EJ 1 1/2, Stainless Steel 150 ANSI Flanged Valve – V5S Series

Additional information

Valve Size

1 1/2 in

Thread Type

150 ANSI Flanged

Porting

Full

A - Port Diameter

1.50 in

Handle Type

Lever

Series

V5S

Valve Type

Ball

Operation Type

Manual

Ball Pattern

Bi-Directional, Conventional

End Connections

ANSI 150 Flange

Body Style

2 Piece

Number of Ports

2

Valve Working Steam Pressure

125 psi

Ball Material

316 Stainless Steel

Seat Material

RTFE

Body Material

Stainless Steel

Body Finish

316 Stainless Steel

Stem Material

Stainless Steel

Handle Material

Stainless Steel

Trim Material

Stainless Steel

B Dimensions

6.50 in

E Dimensions

8.07 in

Application

Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Degreasing, Demineralizers, Dewatering and Sludge Movement, Effluent Lines, Filling, Filtration Systems, General Chemical Applications, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Material Flow, Mixing, Municipal Service, Natural Gas and Oil Production, Pickling, Plating, Solid and Liquid Waste Control, Steel Mills, Washdown

Temperature Range

-4°F to 392°F

Seal Type

Graphite/Viton

Description

V5S Flanged Series ball valves are perfect for a wide range of applications where ANSI 150 flange is needed. This two piece A351-CF8M stainless steel investment cast body valve features a blow-out proof stem, anti-static device, and a fire safe design (test to API 607). ISO 5211 mounting pad makes automation easy! See our DynaMatic E5S-Flanged and P5S-Flanged series for assemblies.

Key Benefits:

  • ISO 5211 direct mount pad provides accurate stem alignment and eliminates need for brackets.
  • RTFE Seat, seal, and packing
  • Spring system on stem.
