Valve Size
|
1/2 in
|
Thread Type
|
150 ANSI Flanged
|
Porting
|
Full
|
A - Port Diameter
|
0.59 in
|
Temperature Range
|
-4°F to 392°F
|
Handle Type
|
Lever
|
Series
|
V5S
|
Valve Type
|
Ball
|
Operation Type
|
Manual
|
Ball Pattern
|
Conventional, Bi-Directional
|
End Connections
|
ANSI 150 Flange
|
Body Style
|
2 Piece
|
Number of Ports
|
2
|
Valve Working Steam Pressure
|
125 psi
|
Ball Material
|
316 Stainless Steel
|
Seat Material
|
RTFE
|
Body Material
|
Stainless Steel
|
Body Finish
|
316 Stainless Steel
|
Seal Type
|
Graphite/Viton
|
Stem Material
|
Stainless Steel
|
Handle Material
|
Stainless Steel
|
Trim Material
|
Stainless Steel
|
B Dimensions
|
4.25 in
|
E Dimensions
|
7.48 in
|
Application
|
Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
|

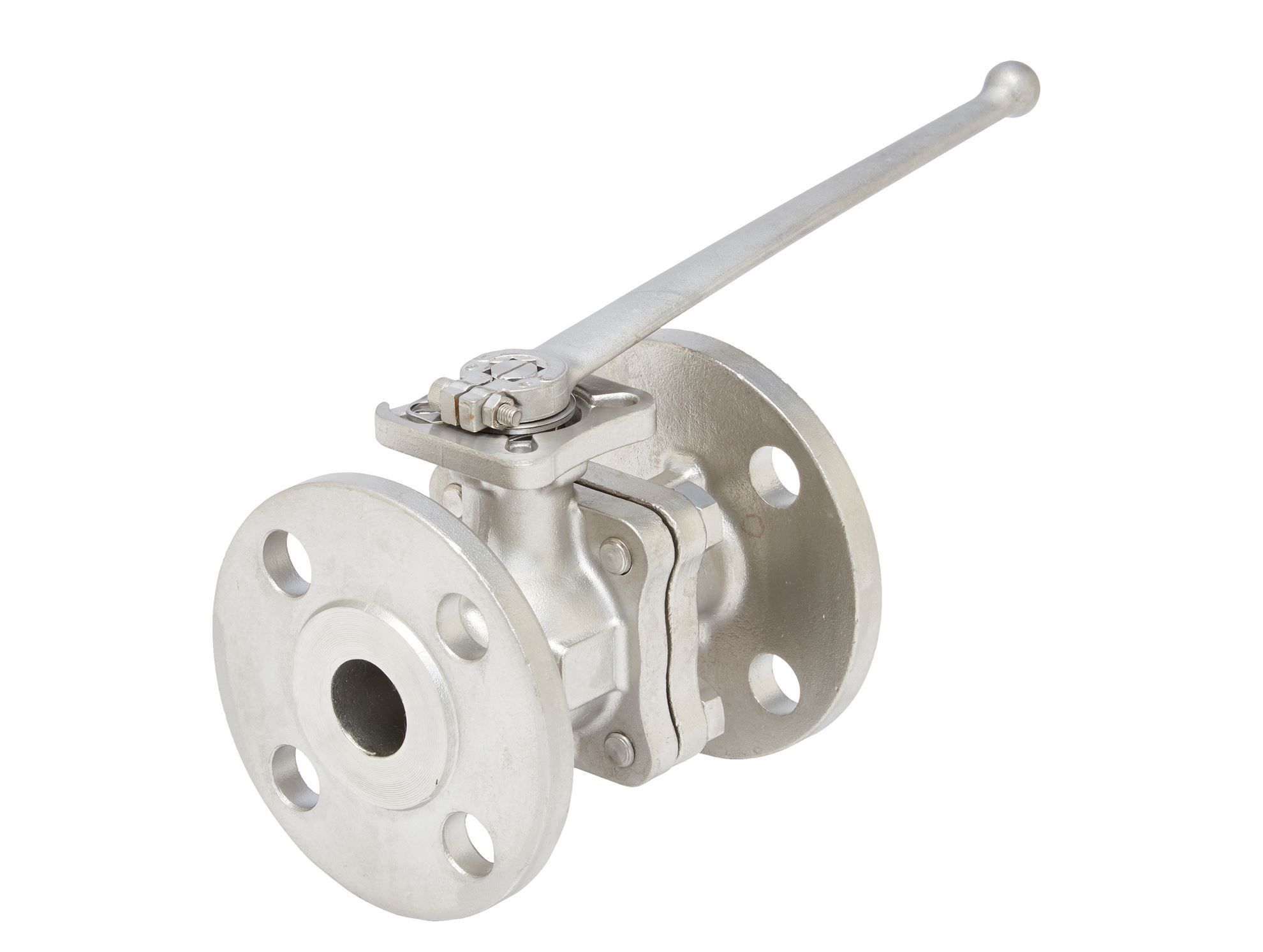

V5S Flanged Series ball valves are perfect for a wide range of applications where ANSI 150 flange is needed. This two piece A351-CF8M stainless steel investment cast body valve features a blow-out proof stem, anti-static device, and a fire safe design (test to API 607). ISO 5211 mounting pad makes automation easy! See our DynaMatic E5S-Flanged and P5S-Flanged series for assemblies.
Key Benefits:
- ISO 5211 direct mount pad provides accurate stem alignment and eliminates need for brackets.
- RTFE Seat, seal, and packing
- Spring system on stem.
