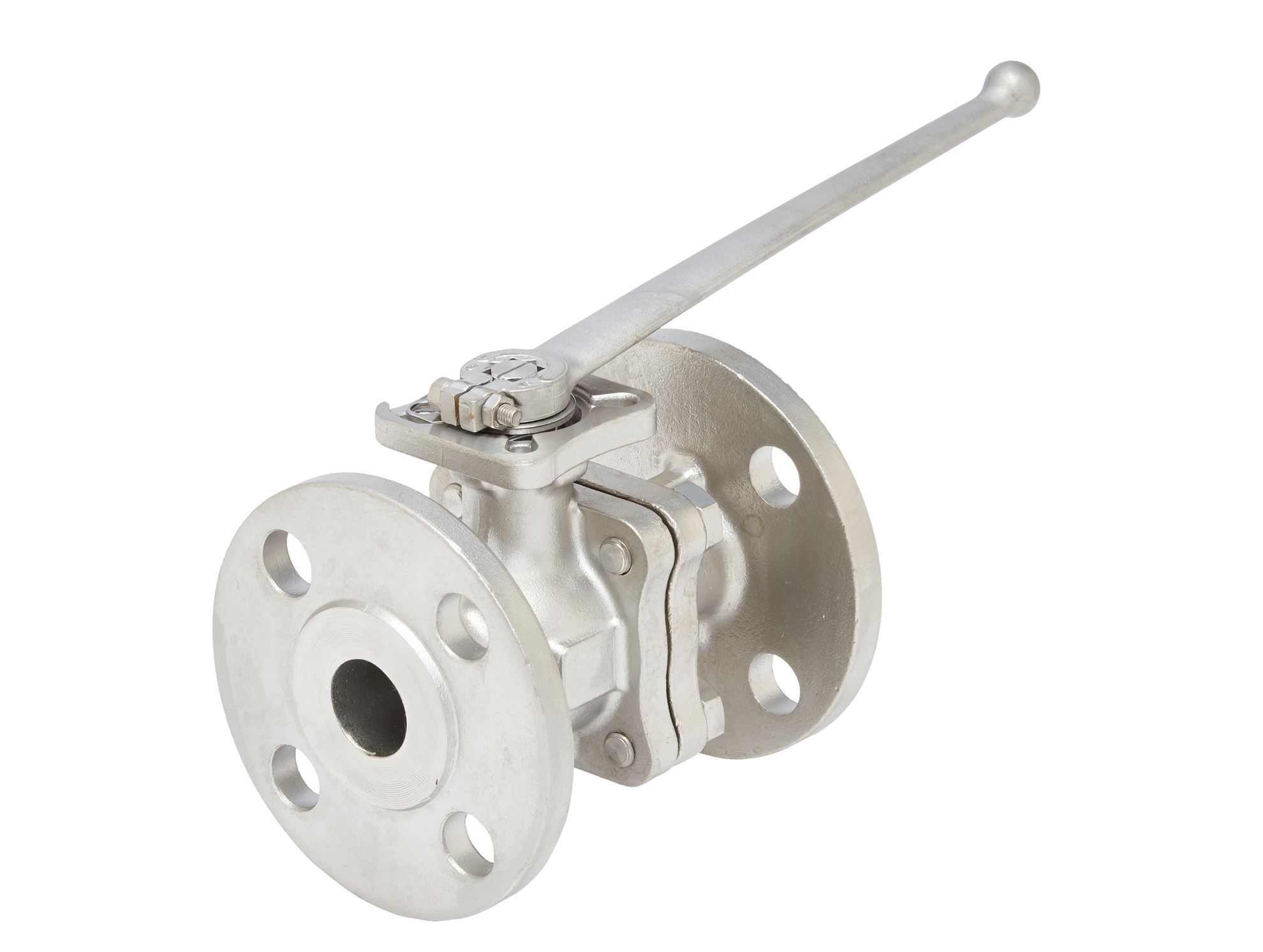

V5S2.EJ 3, Stainless Steel 150 ANSI Flanged Valve - V5S Series

Valve Size 3 in
Thread Type 150 ANSI Flanged
Porting Full
A - Port Diameter 2.99 in
Temperature Range -4°F to 392°F
Handle Type Lever
Series V5S
Valve Type Ball
Operation Type Manual
Ball Pattern Conventional, Bi-Directional
End Connections ANSI 150 Flange
Body Style 2 Piece
Number of Ports 2
Valve Working Steam Pressure 125 psi
Ball Material 316 Stainless Steel
Seat Material RTFE
Body Material Stainless Steel
Body Finish 316 Stainless Steel
Seal Type Graphite/Viton
Stem Material Stainless Steel
Handle Material Stainless Steel
Trim Material Stainless Steel
B Dimensions 8.00 in
E Dimensions 13.80 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications

V5S Flanged Series ball valves are perfect for a wide range of applications where ANSI 150 flange is needed. This two piece A351-CF8M stainless steel investment cast body valve features a blow-out proof stem, anti-static device, and a fire safe design (test to API 607). ISO 5211 mounting pad makes automation easy! See our DynaMatic E5S-Flanged and P5S-Flanged series for assemblies.

Key Benefits:

  • ISO 5211 direct mount pad provides accurate stem alignment and eliminates need for brackets.
  • RTFE Seat, seal, and packing
  • Spring system on stem.
