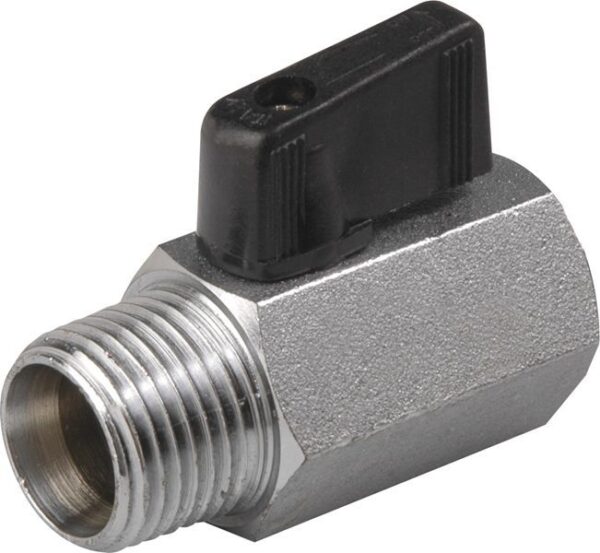

VNH3.AM 1/2, Brass 1-Piece Mini Valve - VNH Series

Valve Size 1/2 in
Thread Type FNPT
Valve CWP 450 psi
A - Port Diameter 0.94 in
Temperature Range -4 to 200 ºF
Handle Type Wing
Series VNH
Valve Type Ball
Operation Type Manual
Ball Pattern Straight Through
End Connections FNPT
Body Style 1 Piece
Porting Reduced
Weight 0.32 lb
Number of Ports 2
Ball Material Chrome Plated Brass
Seat Material RTFE
Body Material Brass
Stem Seal Type Viton® O-Ring
Handle Finish Nylon
Body Finish Chrome Plated
Seal Type Viton®
Stem Material Brass
Handle Material Nylon
Trim Material Brass
B Dimensions 2.11 in
D Dimensions 0.89 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
VNH Series mini ball valves are for small line fluid and gas control applications. Industrial quality, one-piece brass bar stock design chrome plated for corrosion resistance. Multi-directional operation.

Key Benefits:
  • Space Saving Design
  • PTFE Seats, Viton® Stem Seals
  • UL Approved for Refrigerant
  • Corrosion-Resistant Nylon Wing Handle
Options:
  • Available in FxF or MxF Threads
