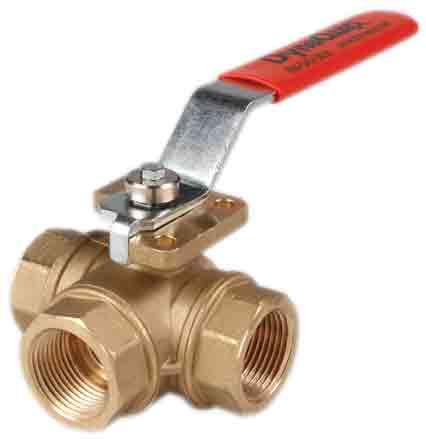

VYHG.AU 1 1/4, Brass 3-Way Valve - VYH Series

Valve Size 1 1/4 in
Thread Type FNPT
Valve CWP 400 psi
Port Diameter 0.98 in
Temperature Range -20 to 450 ºF
Handle Type Lever
Series VYH
Valve Type Ball
Operation Type Manual
Ball Pattern L
End Connections FNPT
Body Style 3-Way
Porting Standard
Weight 4.15 lb
Number of Ports 3
Ball Material Ni-Chrome Plated Brass
Seat Material PTFE
Body Material Brass
Handle Finish Vinyl Grip
Seal Type PTFE/Viton®
Stem Material Nickel Plated Brass
Handle Material Steel
Trim Material Brass
B Dimensions 4.39 in
G Dimensions 6.69 in
Application Agricultural and Food Processing, Altertive Energy and Fuel Production, Bulk Product Movement, Chemical Processing, Compressed Air Services, Condensate Removal, Coolants, Effluent Lines, Degreasing, Pickling, Plating, Washdown, Demineralizers, Dewatering and Sludge Movement, Filtration Systems, Hydraulic/Pneumatic Systems and Lifts, Ink Spraying and Cleaning, Line Purge, Machine Cooling, Mixing, Filling, Material Flow, Municipal Service, Natural Gas and Oil Production, Solid and Liquid Waste Control, Steel Mills, General Chemical Applications
VYH Series Three-way utility ball valve has a 90deg “L” port design for diverting flow from 1 inlet to two outlet ports. Features include chrome-plated brass and double O-ring stem packing for reduced torque, blowout-proof stem, four seat design and NPT end connections. ISO 5211 mounting pad makes automation easy! See our DynaMatic EYH and PYH series for assemblies. Not suitable for steam applications.

Key Benefits:
  • ISO 5211 direct mount pad
  • Self-adjusting Stem packing
  • Blowout Proof Stem Design
  • Low Friction Stem Seals
